Self Contained Unit – BLDC Variable Speed – CC

Self Contained Units with BLDC inverter technology for independent air conditioning systems.

DC version

Models
SCU07VFD
7.000 BTU/h
SCU10VFD
10.000 BTU/h
SCU12VFD
12.000 BTU/h
SCU16VFD
16.000 BTU/h

New Touchscreen Thermostat

1 of 5

The adjustable air output of 135 ° allows an optimum installation.

2 of 5

The detachable electric panel can be positioned as needed.

3 of 5

Fixing hooks to the boat

4 of 5

Air Duct Adaptor
SCU07-SCU10: Ø 120 mm
SCU12-SCU16: Ø 150 mm

5 of 5
BMEEA Product of the Year Award 2019

Compact Second-Generation BLDC Invertersnow also with direct current

Easy to install

The compact overall dimensions and low weight allow the installation on-board all types of boat.

Moreover, the air outlet is adjustable by 135 ° and the electric panel can be separated from the refrigerant body in order to optimize the mode and installation spaces.

SCU Touch-screen thermostat
SCU Electric Panel
SCU Touch-screen thermostat

Touchscreen Thermostat

Touch-screen room thermostat to manage the temperature and operation modes: winter/summer, ventilation, night.

Manual/automatic control of the three fan coil speeds. Two temperature sensors. Support for standard Bticino thermostat cover plates.

Accessories

Our Self Contained units are integrated with various accessories to expand the features and make them as the customer desires.

Smart-phone control Application
// WI-FI module with control APP

* Under development – available soon.

UV A/C LED air sterilizer
// UV A/C LED air sterilizer KIT

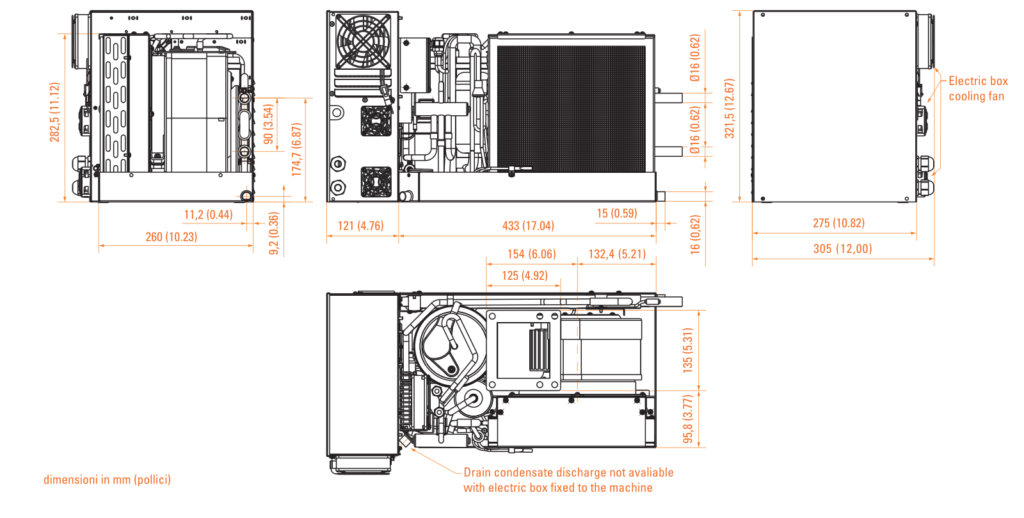

Technical Specifications

SCU07VFD-24 SCU07VFD-48
Width 433 mm
Height * 282 mm
Depth 260 mm
Weight
(including electrical box)
23,5 kg
Electrical panel dimensions 272 x 320 x 122 mm
Voltage / phase / frequency 24 V 48 V
Maximum cooling/heating capacity 7.000 BTU/h
Maximum input power 520 W 520 W
Maximum current 21,6 A 10,8 A
Cooling capacity
ECO mode **
3.000 BTU/h
Input power
ECO mode **
180 W
Max flow-pressure drop
of seawater***
1,0 m3/h - 2,8 m H2O
Min flow-pressure drop
of seawater***
0,8 m3/h - 1,8 m H2O
Air exit duct diameter 120 mm
R410A refrigerant gas 0,350 kg

* Electric panel included

** Minimum fan speed

*** Considering only the seawater condenser
